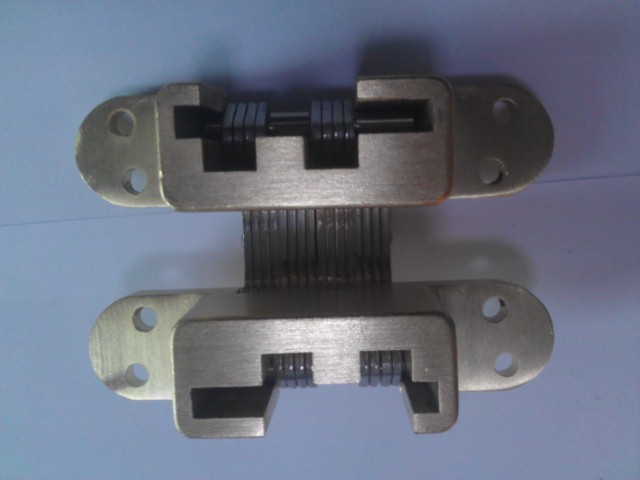

Concealed Door Hinge

  • Model NO.: AG002
  • Size(W*L*D): 28 x 118 x 22 mm
  • Material: Zinc Alloy Body, Stainless Steel Connector
  • Available Finishes: Satin Chrome, Satin Nickel, Polished Chrome, Polished Brass, Satin Brass, Antique Brass, Antique Copper, Pearl Chrome, Pearl Nickel,Brushed Nickel, PVD
Description:

Model No.: AG002

1, Size(A*B*C): 28 x 118 x 22 mm

2,Material: Zinc Alloy Body, Stainless Steel Connector

3, Available Finishes: Satin Chrome, Satin Nickel, Polished Chrome, Polished Brass, Satin Brass, Antique Brass, Antique Copper, Pearl Chrome, Pearl Nickel,Brushed Nickel, PVD

4, Range of application: Wooden Door, Metal Door, Swing Door.

5, Weight/PC: 785 g  Weight bearing: 40 kgs/pc(suggesting 3 pcs/door)

6, Inner packing: 1 pc/Polybag, 2 pcs/inner white box   Outer packing: Carton

7, Delivery Time: 25 ~ 30 days    Loading Port: Jiangmen, Guangdong.

8, Payment Term: T/T; L/C; Western Union; Money Gram.


Custom designs, sizes, colors, and logos are welcomed!






Nylon shim is optional:






A concealed door hinge can have a spring for automatic closing or simply just fold as a normal hinge does.
Secret doors and hidden rooms need the hinges on the doors to be invisible to maintain the idea that the door is simply a part of the wall. The key to making a secret door is the concealed hinges holding the door closed. These hinges install in much the same way, but sit inside a cubby built into the door’s edge and the doorframe so that they fit in the space where the door meets the wall.
Installation method: Drill holes on the door and doorframe, then fix the hinges into the door and doorframe via wooden screws.
